Penny + Giles Introduces New Low-Profile Magnet-Activated Rotary Position Sensor

By DA Staff / 13 Mar 2013

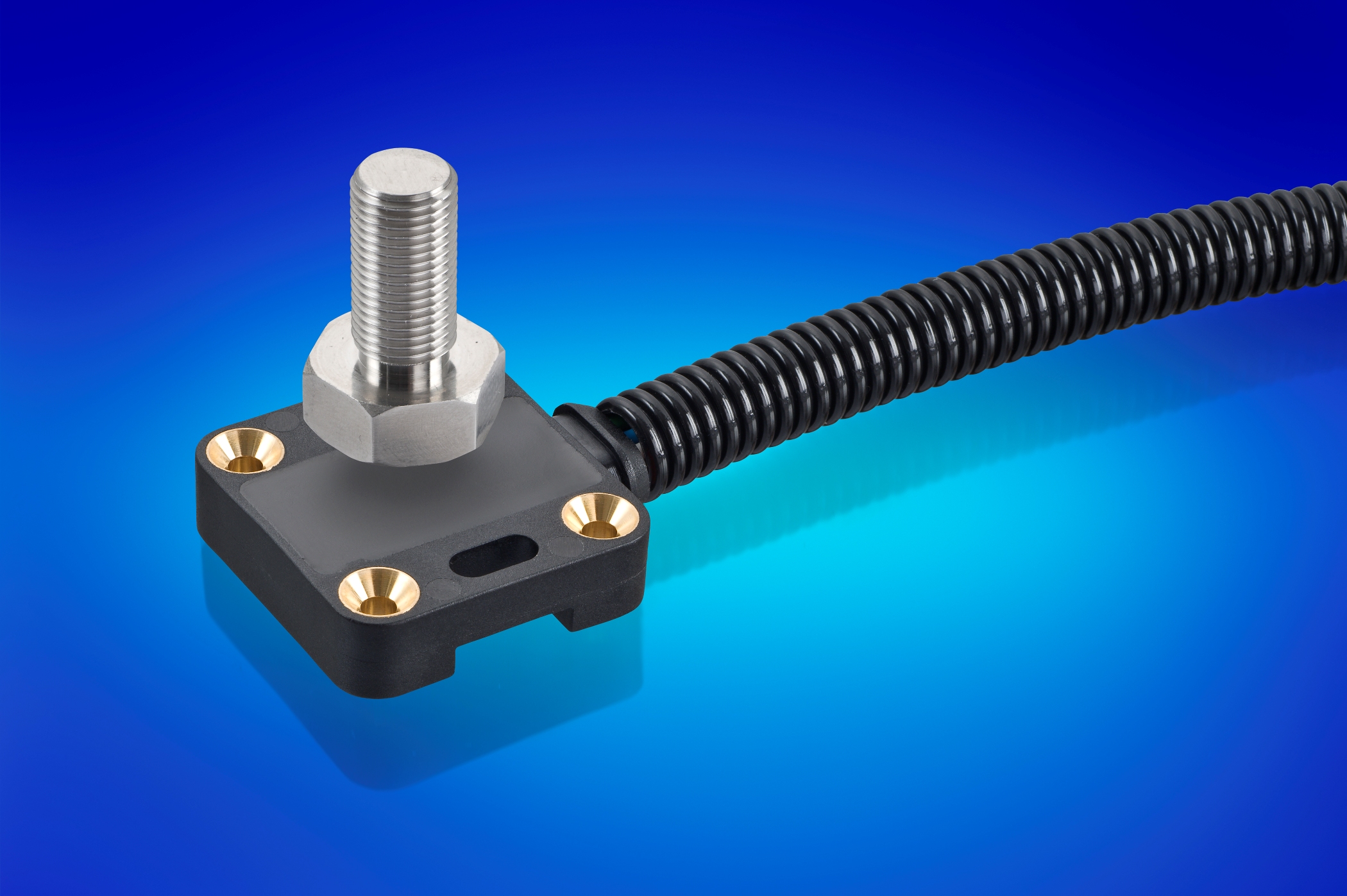

Penny + Giles NRH275DR Rotary Position Sensor

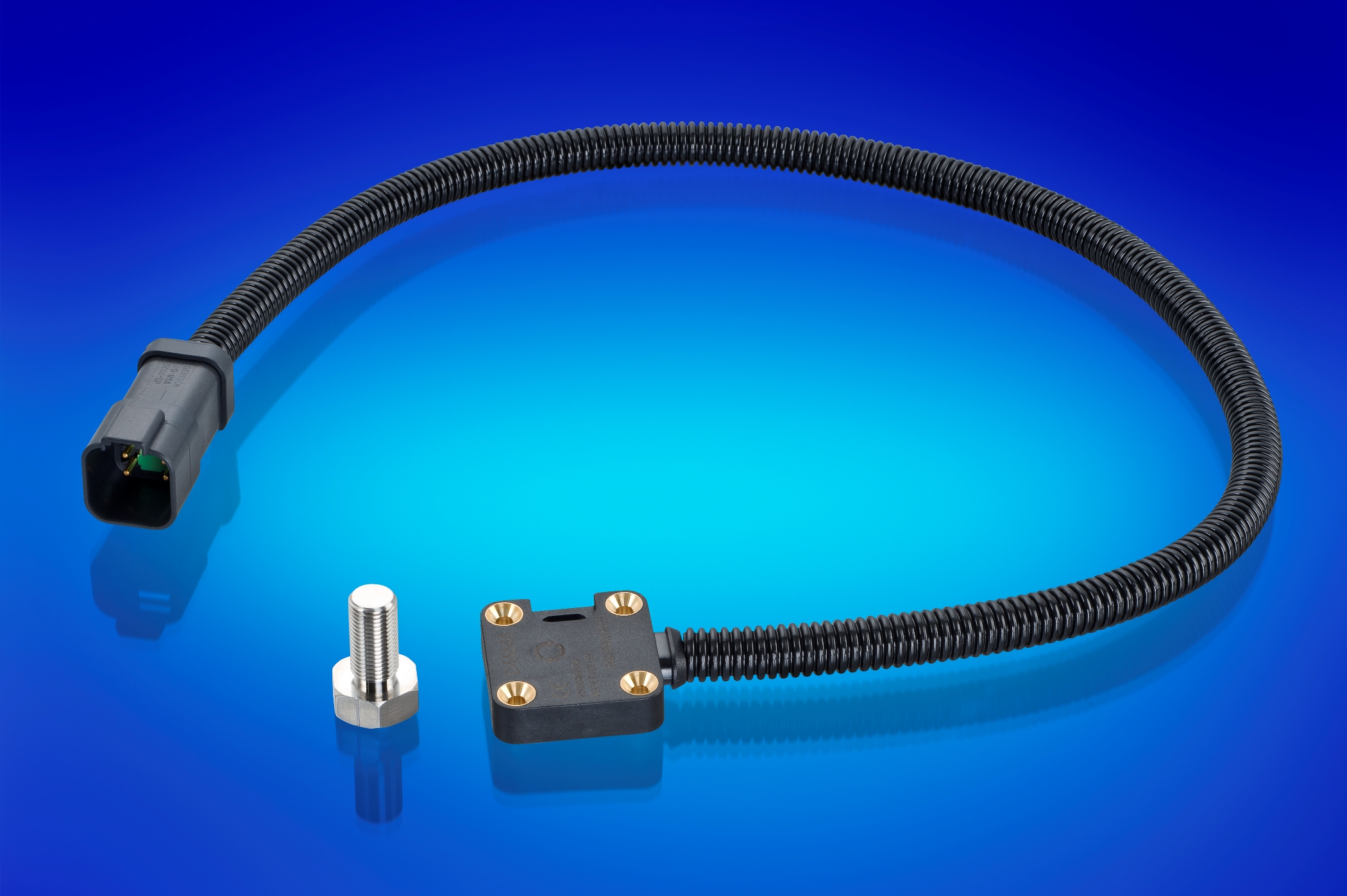

Penny + Giles NRH275DR Rotary Position Sensor

Penny + Giles has introduced the NRH275DR, a new rotary position sensor featuring a slim, low-profile sensor housing and separate permanent magnet assembly.

With no contacting mechanical parts that can wear, this latest addition to Penny + Giles’ growing NRH family of rotary position sensors is ideal for specialist vehicle applications in extreme and hostile environments where installation space may be limited. Examples include tip control for articulated dump trucks, bin lift control for garbage and refuse collection vehicles and four-wheel-steer function for city road sweeping vehicles. The lightweight, low-profile design of the sensor also means it is suitable for throttle position sensing and feedback for motorsport applications.

NRH275DR Position SensorThe NRH275DR features a fully encapsulated 12-bit Hall effect sensor system that can withstand high shock and vibration, can operate at temperatures from -40°C to +140°C and is IP67-rated for dust protection and water immersion to a depth of 1m for 24 hours – more than adequate for the majority of applications on vehicles.

The Penny + Giles rotary sensor operates from a 5Vdc regulated supply and has two independent sensor power supplies and outputs that enable full redundancy. The NRH275DR is factory-programmed to allow a wide range of output configurations including CH1/CH2 angle, output type and output direction. It also features a very low maximum output signal noise of less than 1mV, which means no additional signal filtering is required on the output signals.

The two-part design of the sensor and magnet assembly offers maximum customer flexibility when mounting, accommodating up to ±2mm of radial magnet offset and a permissible air gap of 2mm to 5mm between the sensor and magnet. Measurements can even be made transmissively through non-magnetic materials. Further flexibility is achieved as one of the sensor’s signals can be configured for use as a control function, while the other can be used for position monitoring or display purposes.

To suit individual requirements and achieve maximum performance, the NRH275DR offers OEMs the benefit of selecting multiple configuration options when specifying their unique requirement for factory programming before despatch. These include a measurement range on each channel from 20° to 360° (available in 1° increments); a choice of two analogue voltage output ranges or digital PWM; a choice of signal ramps for each output channel; and a choice of three magnet assembly styles.

The sensor is supplied with six, 18 AWG individual wires as standard, but can also be fitted with Deutsch DTM or AMP Superseal connectors. An optional NC10 plastic conduit tube can also be fitted, giving complete protection of the connecting wires from the sensor body to the connector.

The NRH275DR enables system designers to quickly and easily improve the safety and integrity of their control systems by using the dual independent power supply and output signals, allowing compliance with SIL-2 requirements for systematic safety as defined in IEC 61508.
